Product reference image. Final finishes, equipment and layout are confirmed with your quotation.

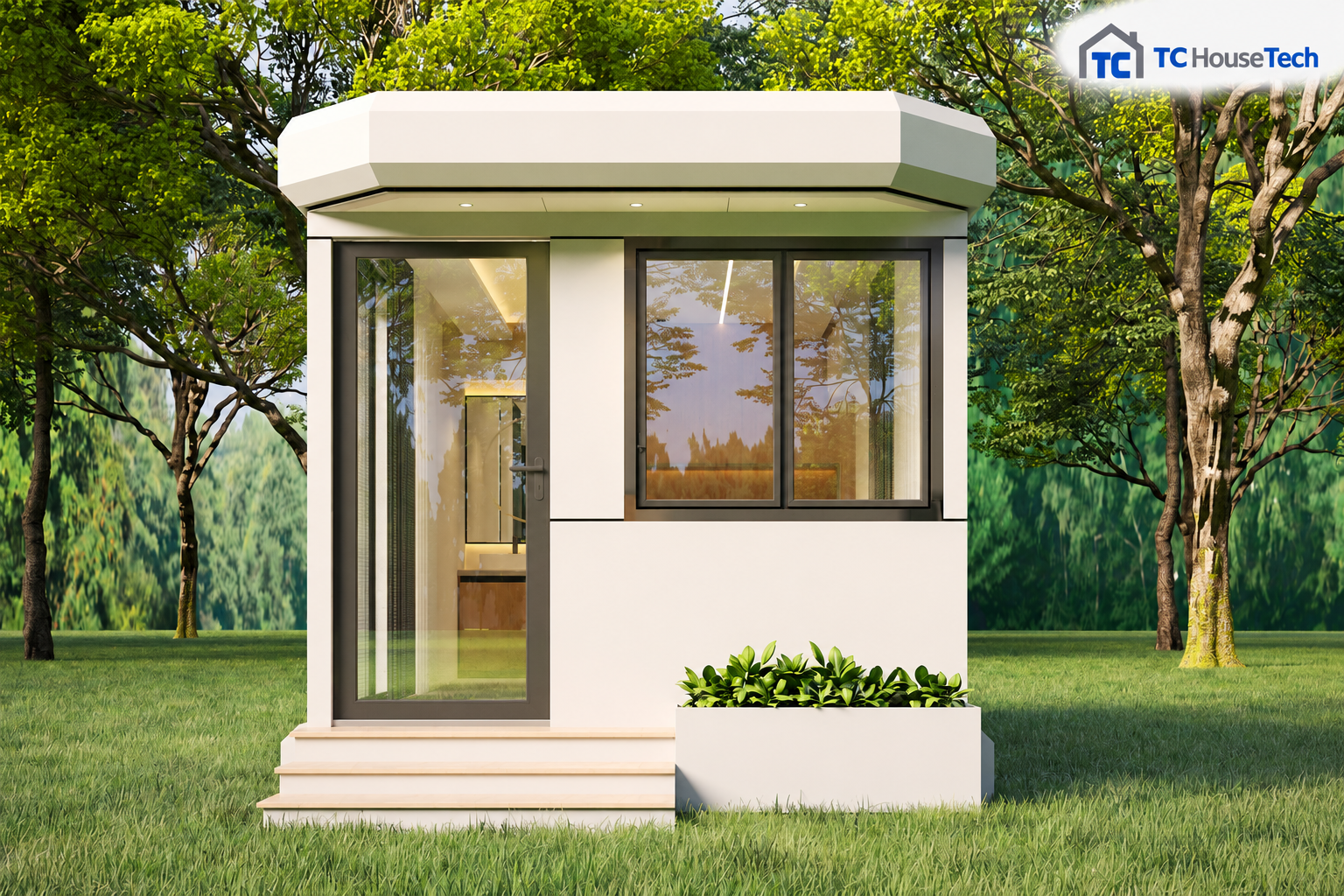

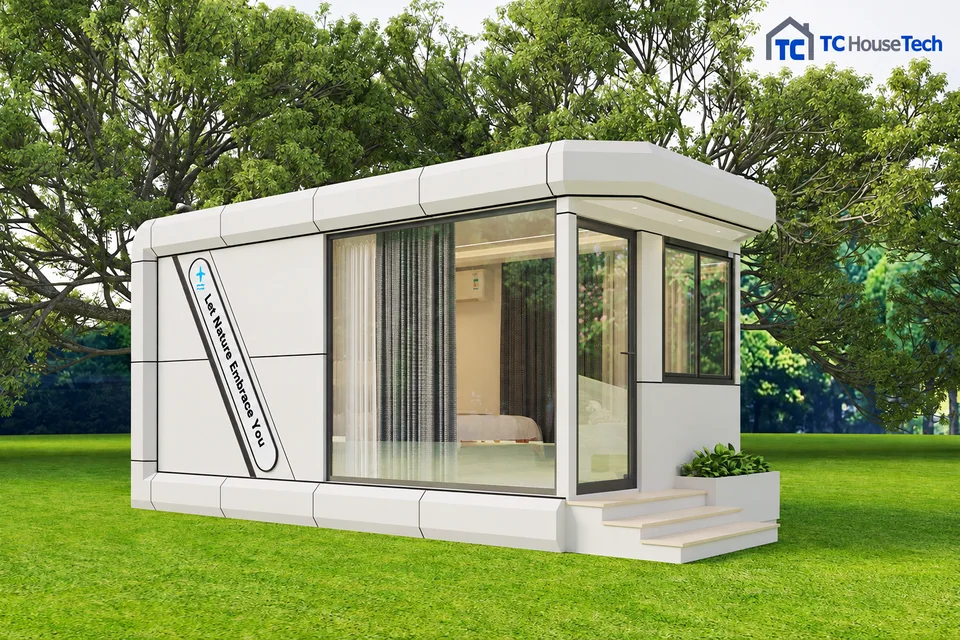

A compact D3 capsule reference with an approximately 18 m² footprint for one or two occupants.
The selected layout, finishes, specifications and delivery scope are confirmed in your project quotation.
Explore the details

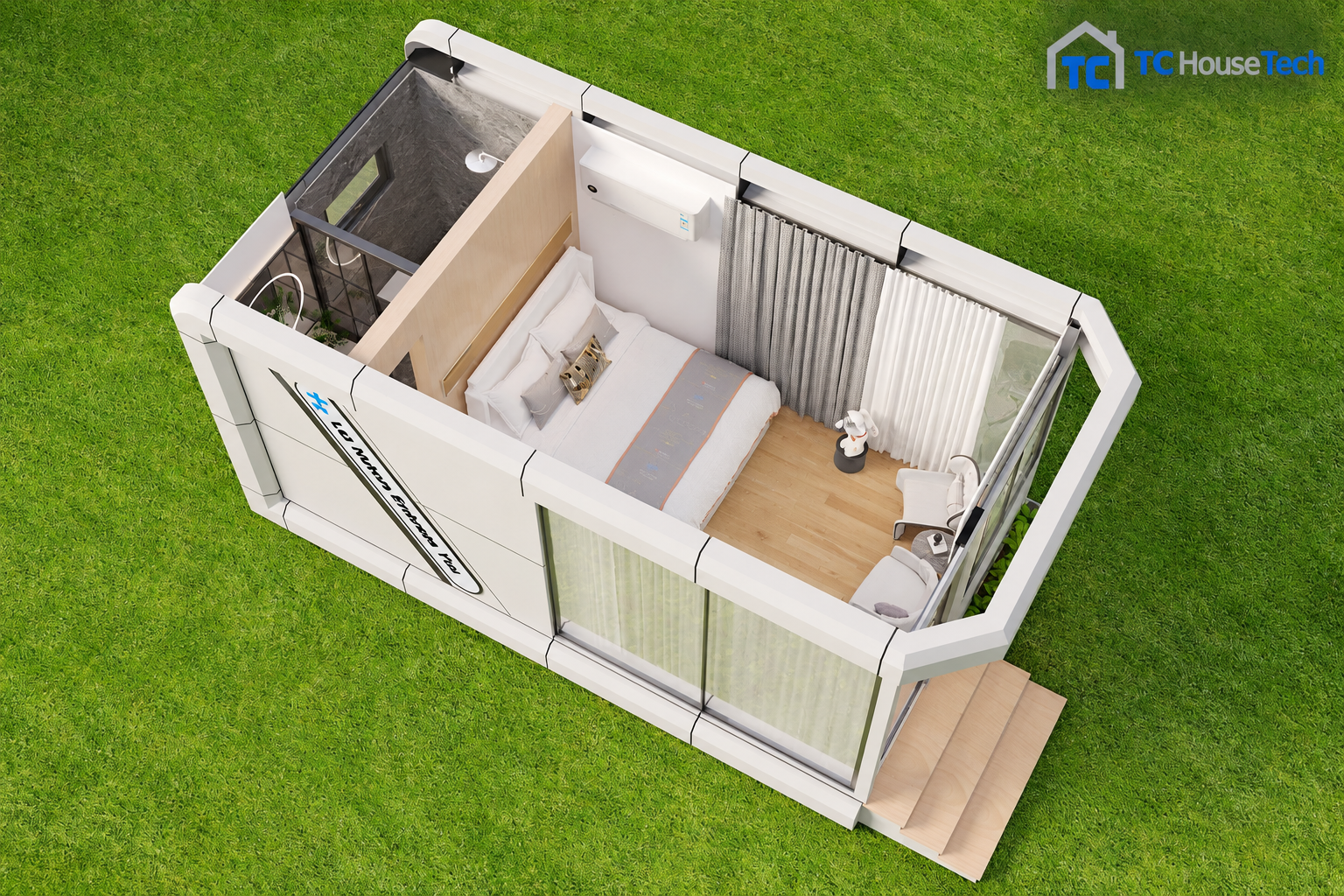

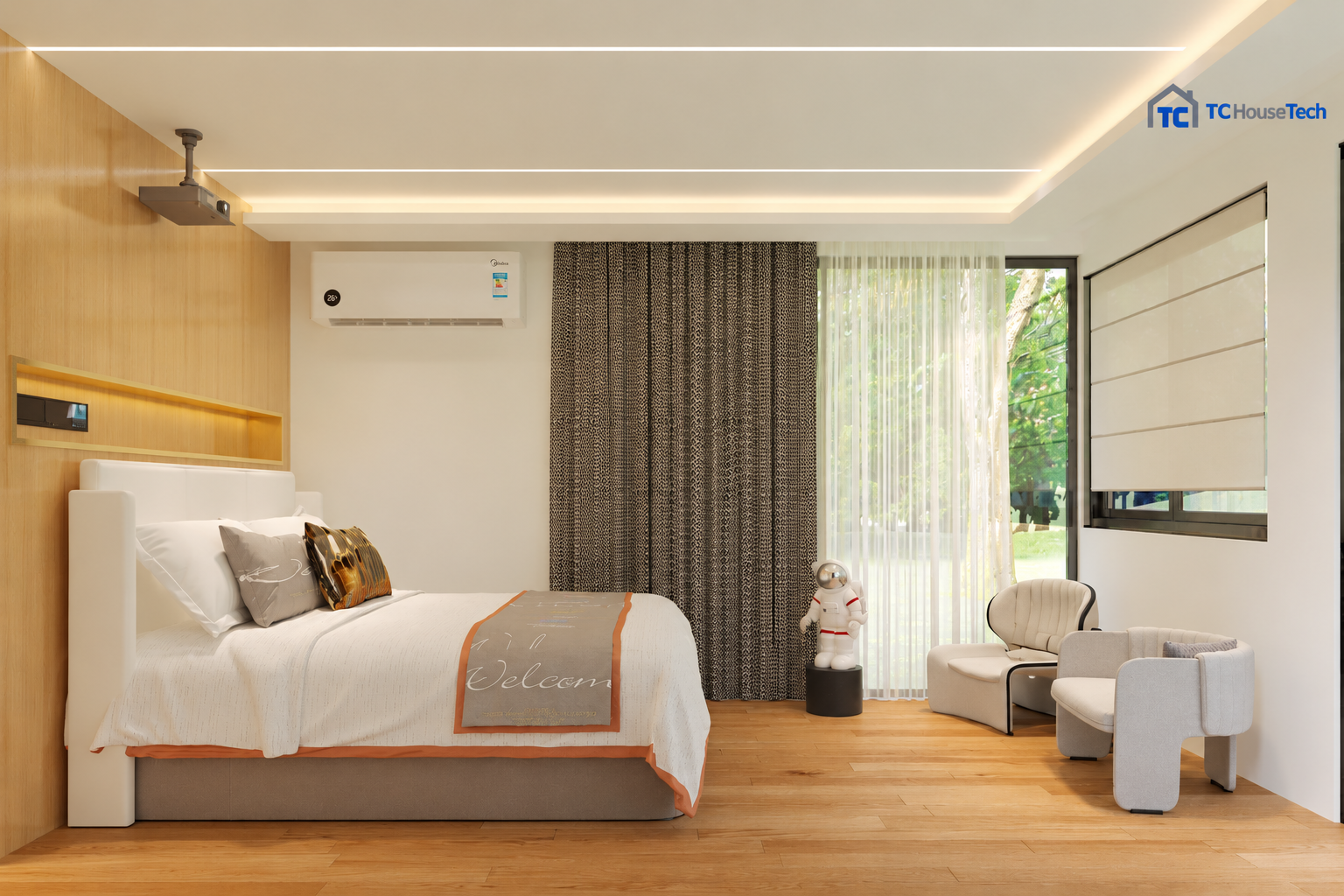

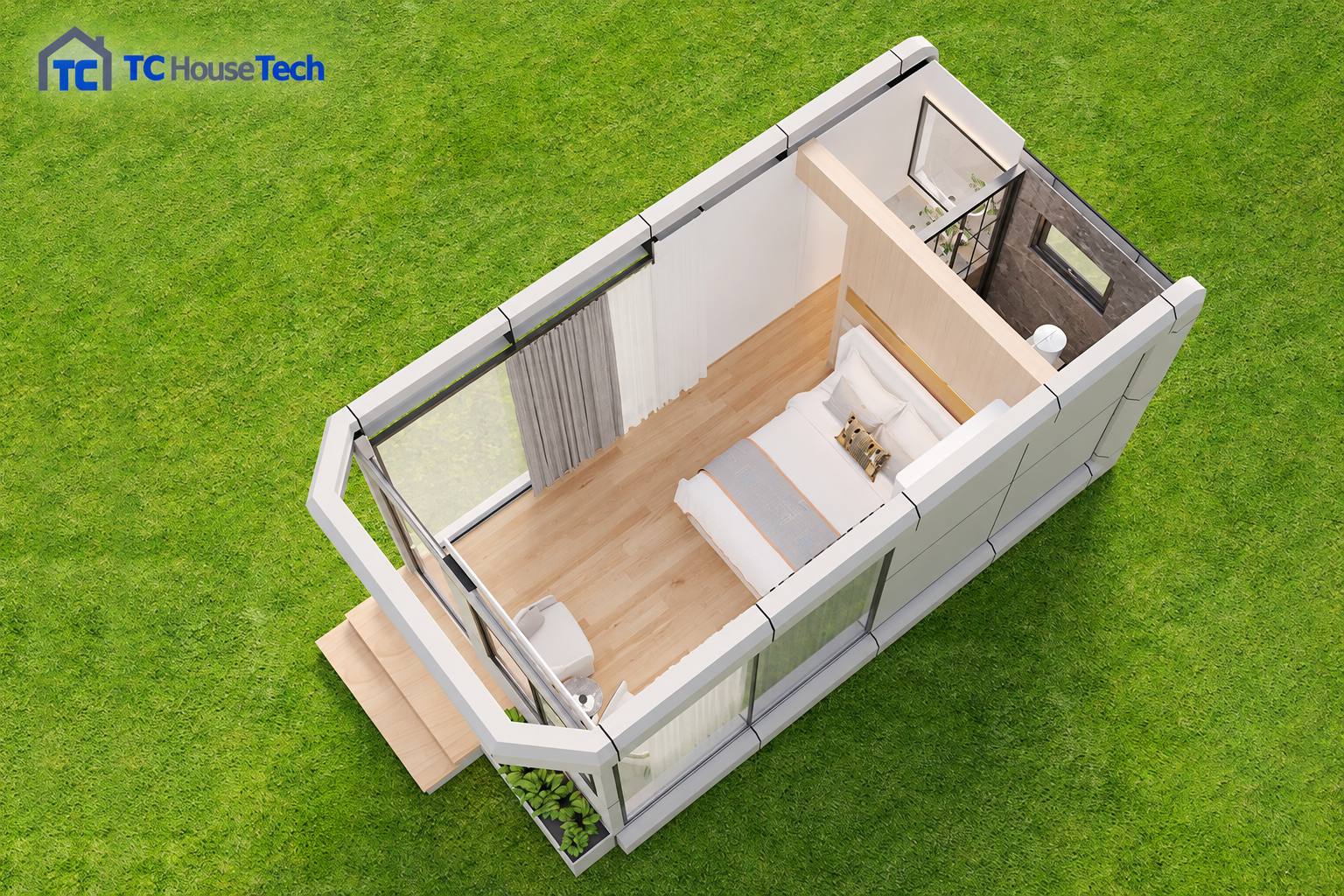

Look through the exterior, interior and layout references for D3 Space capsule. Select a photograph when discussing your preferred configuration.
Materials & equipment
Review the package below when preparing your brief. Items marked optional are selected separately. The final inclusion list, brands, dimensions and destination requirements are confirmed in your quotation.
Hot-dip galvanized steel; double main frame
Fluorocarbon-coated zinc-magnesium alloy sheet
2.0 mm glass-fiber reinforced plastic
50 mm extruded polystyrene insulation
Panoramic insulated LOW-E tempered glazing, 6 + 12 + 6 mm · Double-glazed LOW-E assembly
Flat-roof gutter with dedicated drainage
Fingerprint, card or passcode access
Finished compartment with maintenance access
Warm LED lighting · Three selectable light colors
Hot-dip galvanized round steel support legs
Lifting eyes provided
Wood-finish panels
Wood-finish panels
15 mm fiber-cement board · Source-listed fire, water and decay resistance; confirm the specified material for your project
Stone-plastic composite flooring · Source-listed slip, wear and moisture resistance with acoustic absorption; performance depends on the selected product
Insulated tempered glazing, 6 + 12 + 6 mm · Double-glazed assembly
Included in the reference
Voice / switch control
Blackout fabric curtains
Branded switch panels
Branded socket outlets
Marble countertop / ceramic basin
Smart vanity mirror
Switch control
Custom basin
Stainless steel faucet
Integrated shower set
Combined light, ventilation fan and heater
Conventional toilet
Privacy-glass door
Branded smart water heater
| D3 configuration | |||||||
|---|---|---|---|---|---|---|---|
| Category | Item | Quantity | Unit | Specification | Notes | ||

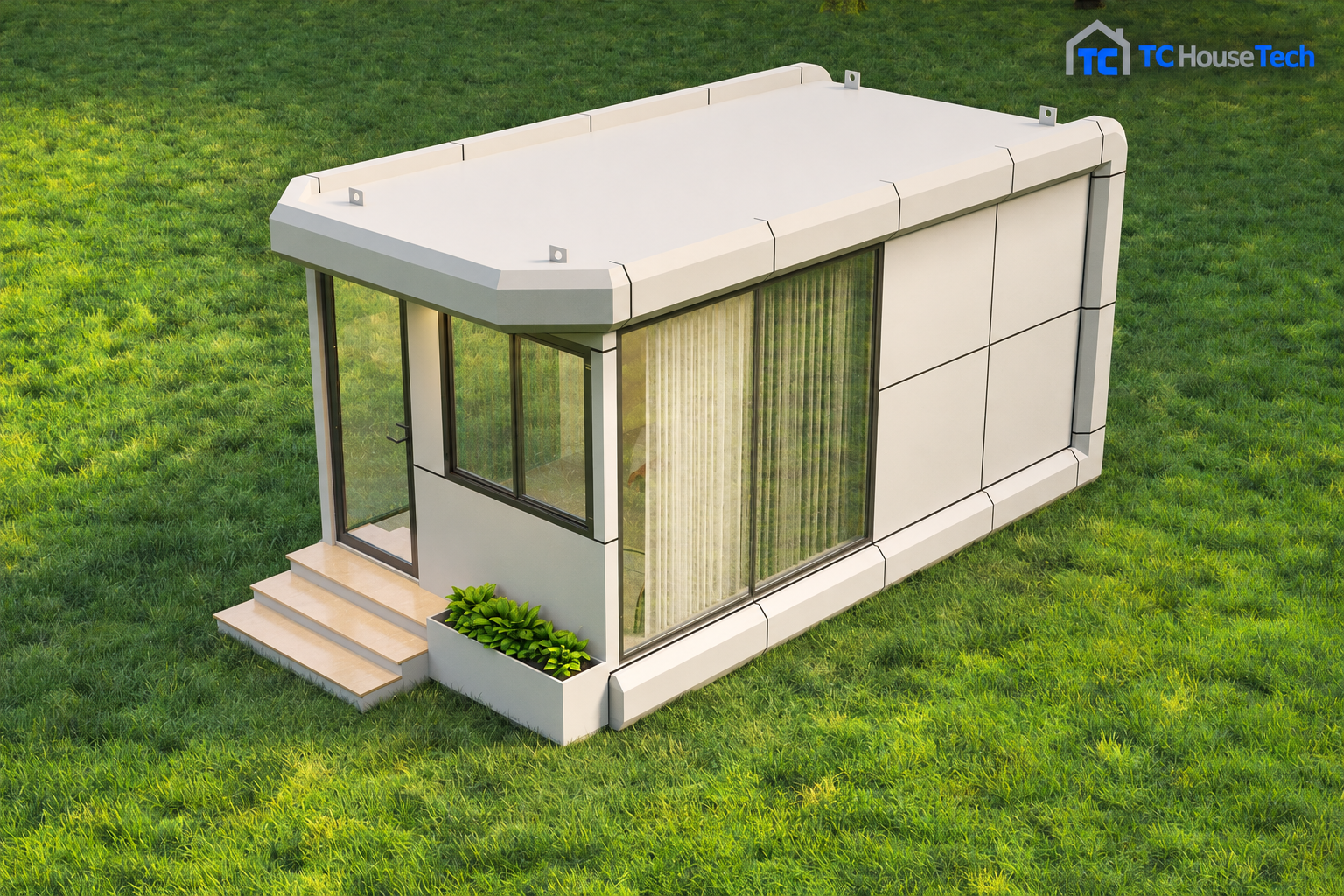

| Reference package | Exterior configuration | Structure & envelope | Structural frame | 1 | set | Hot-dip galvanized steel; double main frame | |
| Exterior cladding | 1 | set | Fluorocarbon-coated zinc-magnesium alloy sheet | ||||
| Roof & base panels | 1 | set | 2.0 mm glass-fiber reinforced plastic | ||||
| Wall insulation | 1 | set | 50 mm extruded polystyrene insulation | ||||
| Glazed facade | 1 | set | Panoramic insulated LOW-E tempered glazing, 6 + 12 + 6 mm | Double-glazed LOW-E assembly | |||
| Waterproofing & drainage | 1 | set | Flat-roof gutter with dedicated drainage | ||||
| Other components | Entrance door | 1 | door | Fingerprint, card or passcode access | |||
| Integrated equipment compartment | 1 | set | Finished compartment with maintenance access | ||||
| Exterior feature lighting | 1 | set | Warm LED lighting | Three selectable light colors | |||
| Support legs | 4 | piece | Hot-dip galvanized round steel support legs | ||||
| Lifting points & transport packaging | 1 | set | Lifting eyes provided | ||||

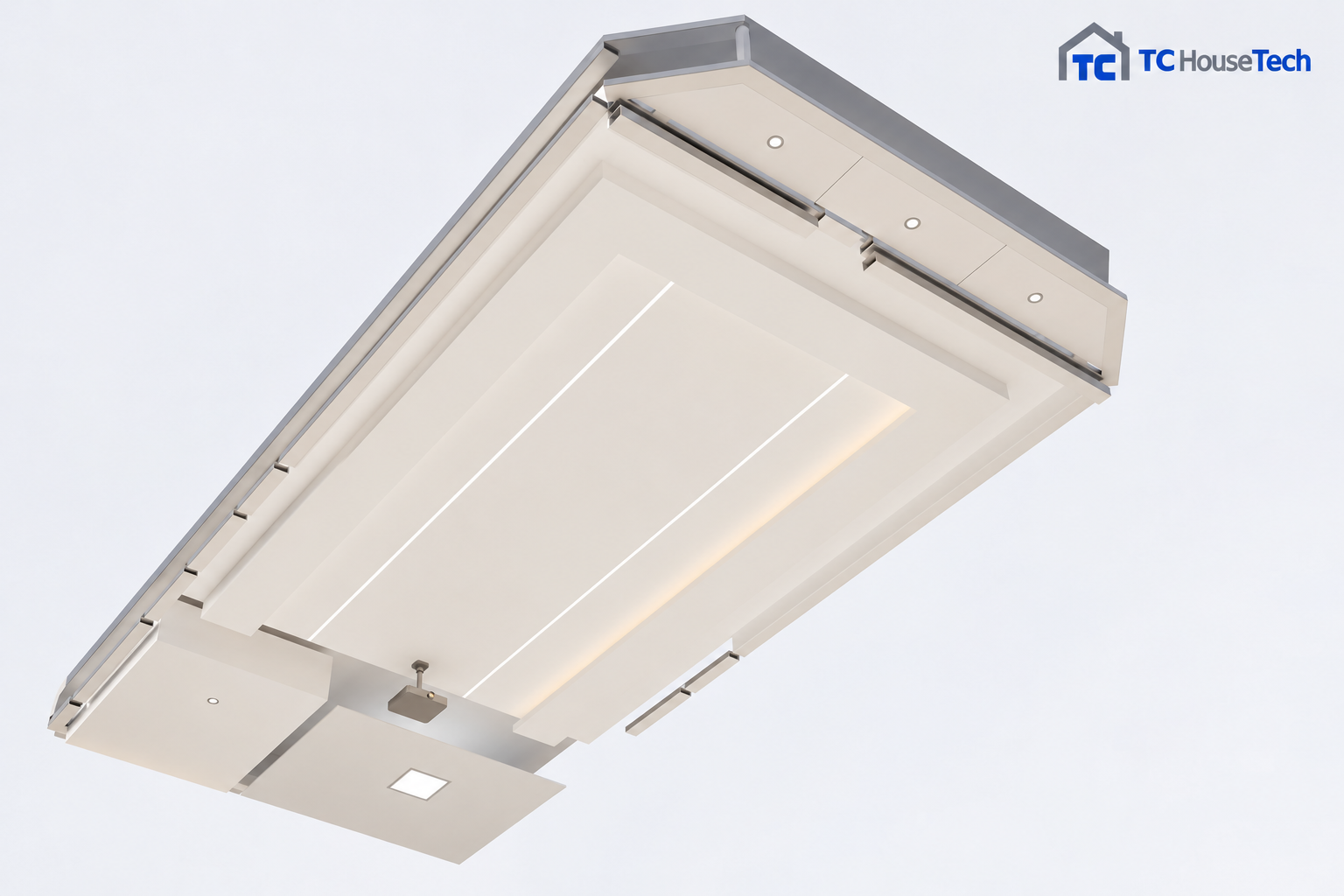

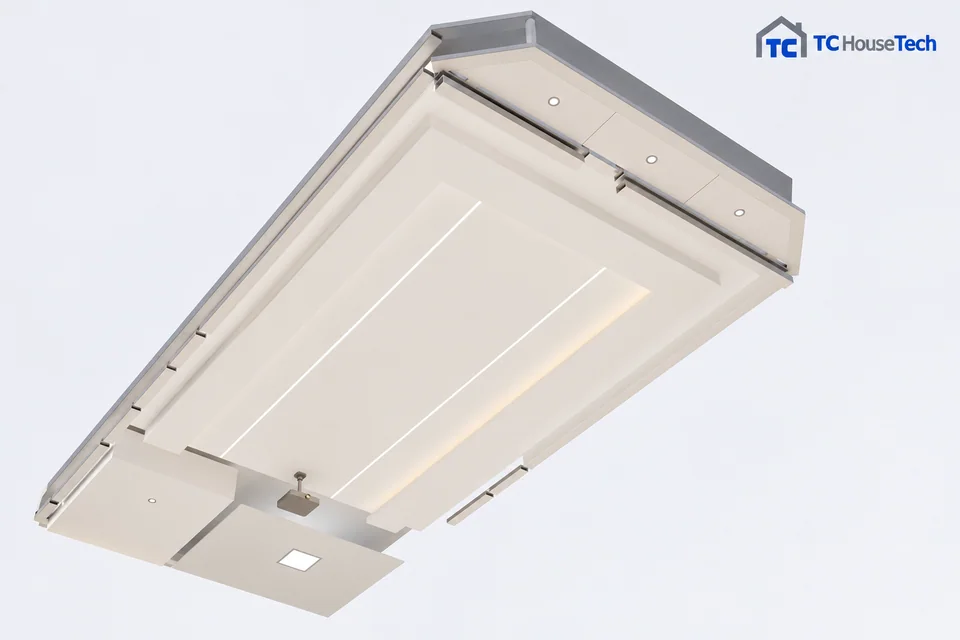

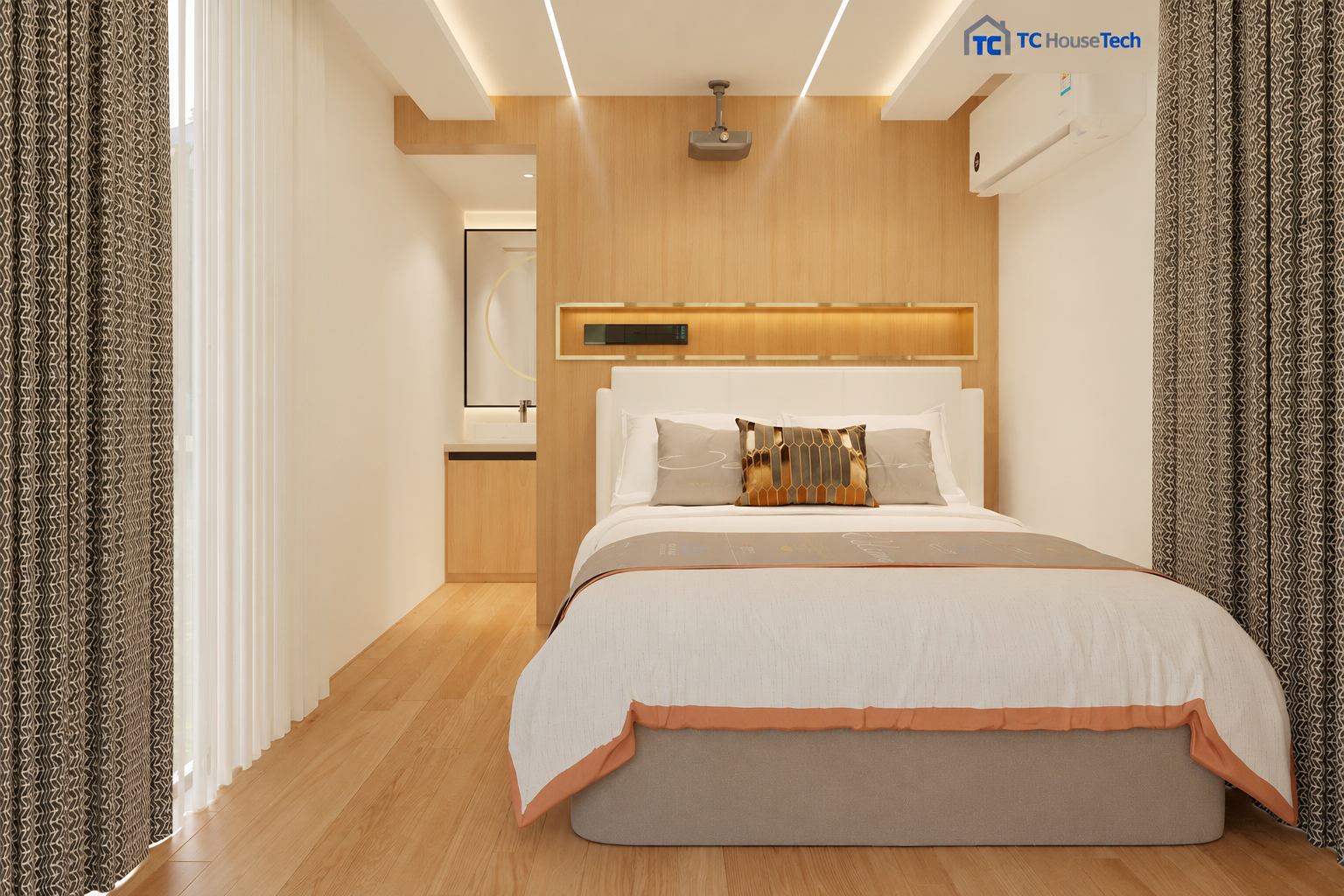

| Interior configuration | Interior finishes | Ceiling finish | 1 | set | Wood-finish panels | ||
| Interior wall finish | 1 | set | Wood-finish panels | ||||
| Floor substrate | 1 | set | 15 mm fiber-cement board | Source-listed fire, water and decay resistance; confirm the specified material for your project | |||
| Floor finish | 1 | set | Stone-plastic composite flooring | Source-listed slip, wear and moisture resistance with acoustic absorption; performance depends on the selected product | |||
| Panoramic skylight | 1 | set | Insulated tempered glazing, 6 + 12 + 6 mm | Double-glazed assembly | |||
| Distribution box & circuit breaker | 1 | set | Included in the reference | ||||
| Room & ambient lighting | 1 | group | Voice / switch control | ||||
| Curtains | 2 | set | Blackout fabric curtains | ||||
| Switch panels | 1 | set | Branded switch panels | ||||
| Socket outlets | 3 | set | Branded socket outlets | ||||

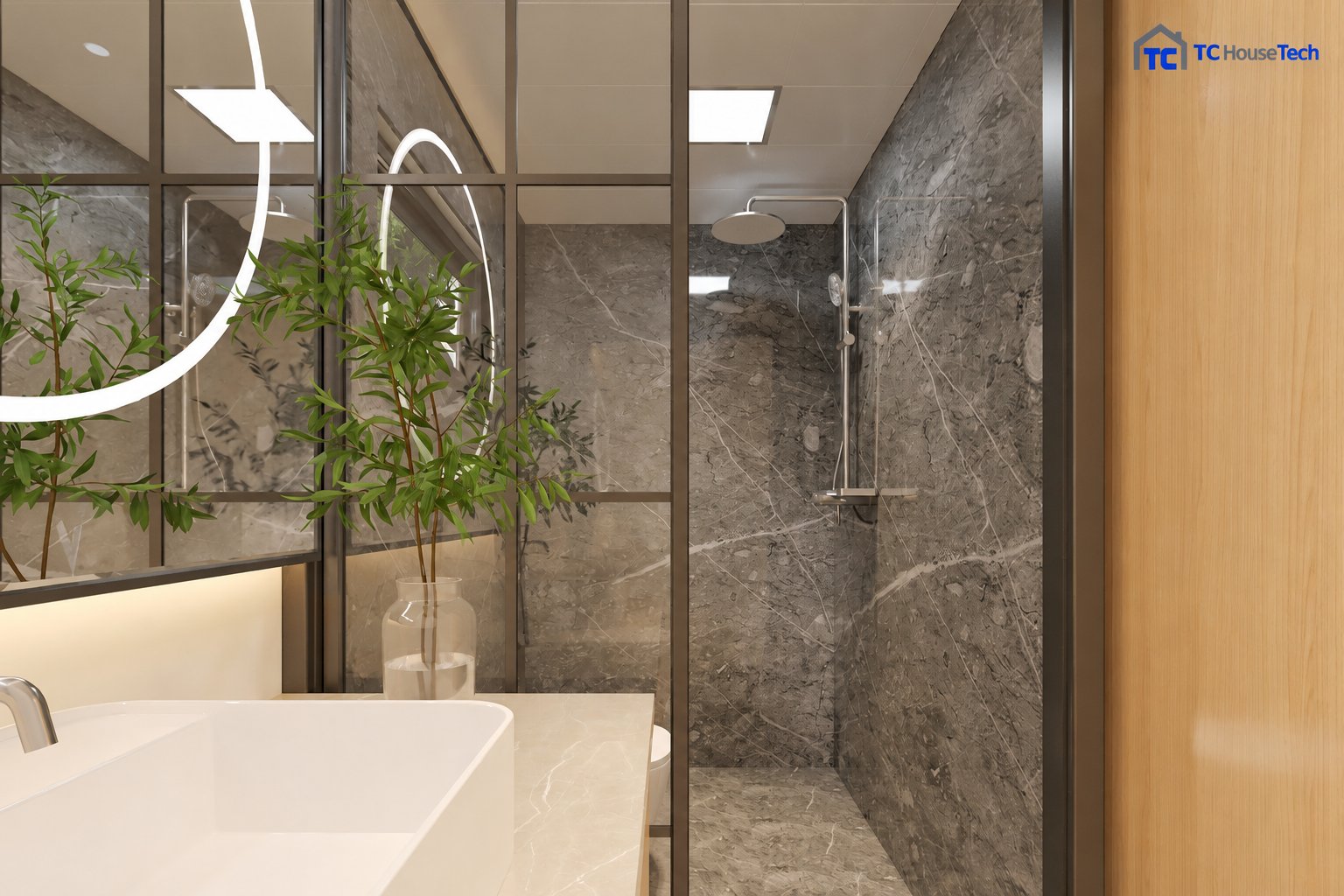

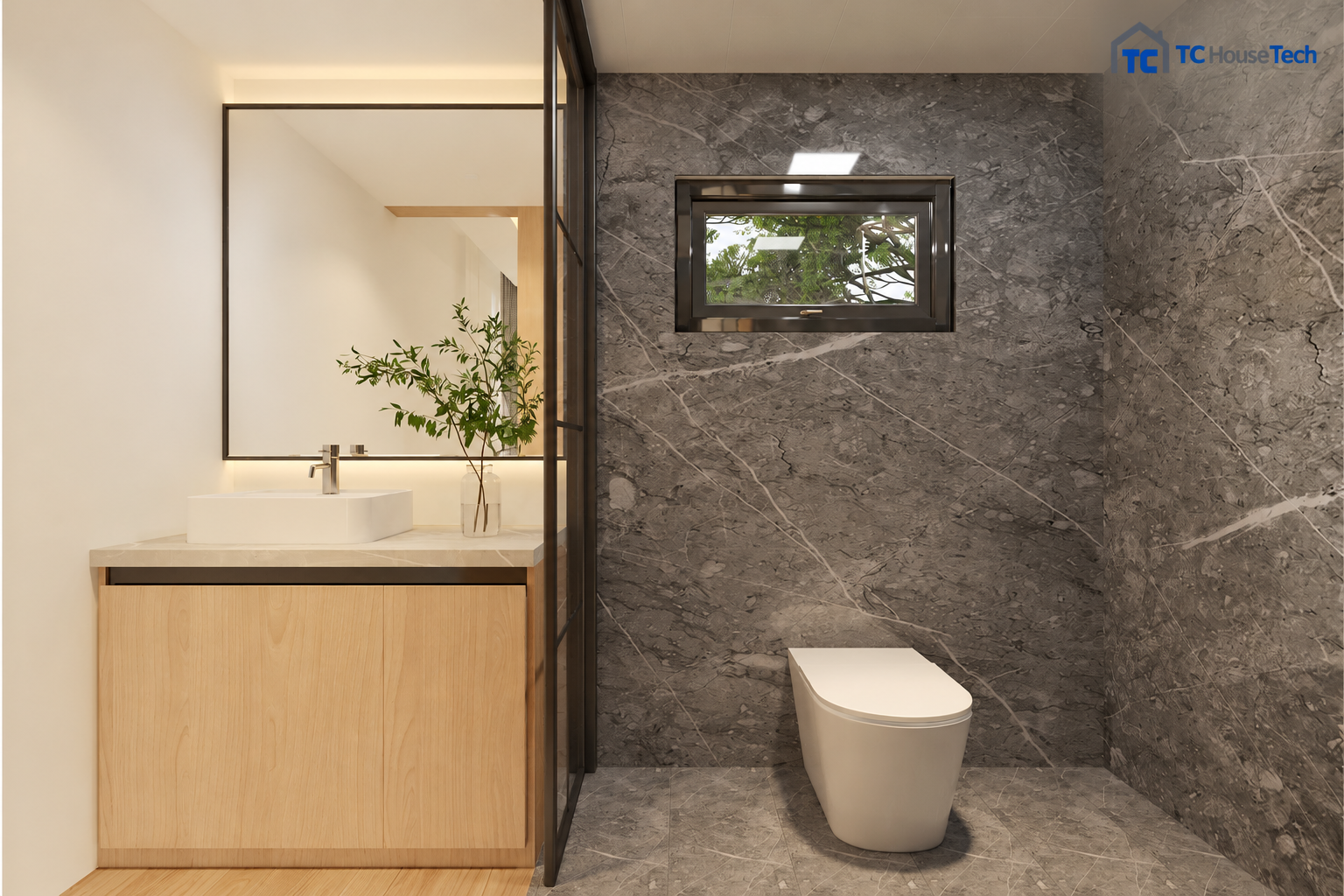

| Bathroom equipment | Vanity | 1 | piece | Marble countertop / ceramic basin | |||
| Bathroom mirror | 1 | piece | Smart vanity mirror | ||||
| Bathroom lighting | 1 | group | Switch control | ||||
| Basin | 1 | set | Custom basin | ||||
| Faucet | 1 | set | Stainless steel faucet | ||||
| Shower | 1 | set | Integrated shower set | ||||
| Bathroom heater / fan | 1 | set | Combined light, ventilation fan and heater | ||||
| Toilet | 1 | set | Conventional toilet | ||||
| Bathroom door | 1 | door | Privacy-glass door | ||||
| Water heater | 1 | unit | Branded smart water heater | ||||
Optional equipment, taxes, freight and installation are itemized for your project. Payment terms, customization costs and production timing are confirmed in the quotation and contract.
Request this configuration ↗From workshop to site
Confirm the packed dimensions, weight and destination before arranging transport. The reference describes road transport using a 13.5 m semi-trailer; the actual route and transport method depend on the selected unit and delivery country.
Plan unloading, crane access and lifting points before the unit arrives. The original handling reference describes 6–10 tonne units and a crane of at least 25 tonnes. The lifting plan and crane capacity must suit the actual load, reach and site.
Prepare the agreed supports, water supply, power and drainage connections. Position the unit according to the site plan, then check the connections and complete the agreed handover with installation guidance.
Share your intended use, occupancy and layout preferences. We will discuss how the reference format fits your project.
Discuss exterior finishes, interior materials and the equipment you need. The final inclusion list is set out in your quotation.
Provide your project country, access conditions and delivery destination so we can discuss transport, installation and site preparation.
Send your preferred model or reference drawing, project location and estimated quantity.
Review the layout, specifications, delivery arrangements and site responsibilities with our team.
Receive a project quotation. Production and delivery timing are confirmed for the agreed configuration.
Choose a model or share your idea. Tell us your project country, intended use and preferred product.
Your details will be used to respond to this inquiry. Final specifications, configuration and delivery scope are confirmed for your project.
